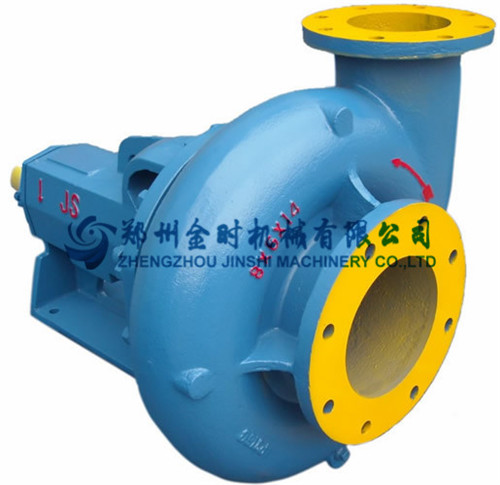

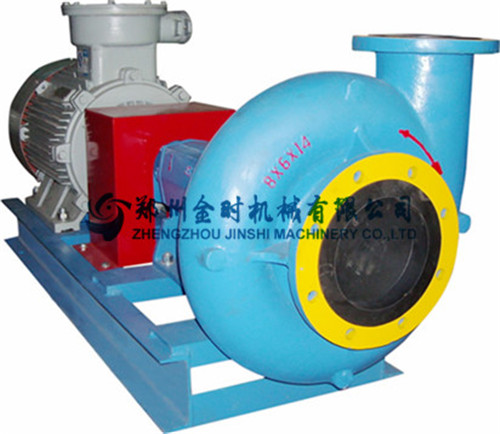

JSB8×6×14 pump

Time:2019-05-07

1. Usage and Application Range

JSB series Centrifugal Sand Pump mainly supplies to solids control circulating system of oilfield drill rig,and be used to provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer,to assure these equipments work efficiently.

The JSB10×8×14 centrifugal sand pump applies to over 3000-meter-long drilling rigs,with big viscosity and specific gravity drilling fluid.The JSB8×6×14 centrifugal sand pmp applies to over 3000-meter-long drilling rigs.The JSB8×6×11 centrifugal sand pump applies to under 3000-meter-long drilling rigs,also can be can be used to supply mud to triplex mud pump as a filling pump.The JSB6×5×11 centrifugal sand pump applies to truck-mounted drilling rigs or pocket drilling rigs.The JSB4×3 centrifugal sand pump is usually used as measuring pump or replenishment pump.The JSB3×2 centrifugal sand pump is usually used as clean water pump.

2. Pump Features

The Series Centrifugal Sand Pump has these features:

(1) Open impeller,apply to transport high viscosity drilling liquid.

(2) Combination seal for a long service life.

(3) Use universal bearing houses and bearings,convenient to maintain and cut the costs.

(4) The major parts are made from antiwear nodular iron,and long service life.

The prinple is that under the motor, the impellers of the pump rotate at high speed, the dring fluid is sucked into the suction pipe. After the drilling fluid flows through the suction pipe and gets enough energy and velocity under the centrifugal force, the drilling fluid is expelled continuously out of the pump

3. Parameters

Model

JSB10×8×14

JSB8×6×14

JSB8×6×11

JSB6×5×14

JSB6×5×11

JSB5×4×14

JSB4×3×13

JSB3×2×13

Discharge

capacity

260300 m3/h

240260 m3/h

220240 m3/h

200220 m3/h

120200 m3/h

80120 m3/h

6080 m3/h

5060m3/h

Pump Head

28~33

2833m

2428m

2428m

2428m

2428m

2228m

2228m

Efficiency

65%

65%

65%

65%

65%

65%

65%

65%

Motor power

75/90 kW

55/75 kW

37/45 kW

37/45/55 kW

30/37/45 kW

18.5/22/30   kW

11/15 kW

7.5/11 kW

Motor speed

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

1450/1750rpm

Inlet diameter

10″

8″

8″

6″

6″

5″

4″

3″

Outlet

diameter

8″

6″

6″

5″

5″

4″

3″

2″

Weight

1060/1140kg

840/1035kg

700/755kg

665/720/795kg

620/655/715kg

525/535/615kg

435/450kg

365/420kg

Overall

dimension

2007×701×950

/2065×701×1015

1927×655×880

/1993×680×950

1855×648×850

/1880×648×850

1823×585×850

/1848×585×850

/1902×600×880

1762×522×814

/1822×585×850

/1847×585×850

1731×514×814

/1731×514×814

/1643×502×714

1531×495×674

/1571×495×674

1388×482×609

/1513×482×674
